HVAC Submittals: How to Put Together a Package That Gets Approved

Nobody gets into the mechanical trades because they love paperwork. But if there's one thing that separates subs who keep construction projects moving from those who don't, it's how they handle HVAC submittals.

Creating submittals for a complex HVAC system involves more moving parts than most documentation tasks in construction, and the margin for error is thin. A well-built package sails through review. A sloppy one sits in a GC's inbox for two weeks, comes back with a rejection notice, and kicks off a cycle that nobody has time for.

The frustrating part is that most rejections are avoidable. They don't happen because the equipment is wrong or the design is bad. They happen because the package wasn't organized to make the reviewer's job easy, or because a handful of technical characteristics were left out or inconsistent with the specs.

This article walks through exactly what goes into an HVAC submittal package, how to structure it, and what reviewers are actually looking for when they open it.

Why the HVAC Submittal Process Takes Longer Than It Should

HVAC submittals are among the most time-consuming in construction, and not just because the equipment is complex. Mechanical packages often require documentation across multiple spec sections, multiple pieces of equipment with different lead times, and multiple layers of approval before anything gets ordered.

For project managers running tight schedules, a rejection at this stage doesn't just mean resubmitting a document. It means potential delays on long-lead equipment that can ripple through the entire submittal schedule.

The problem compounds on fast-track construction projects. Monteith Construction PM Daniel Recktenwald described it well when his team was working through a hospital renovation: the complexity of MEP submittals means any delay in approval hits the critical path directly.

His team used BuildSync’s AI-powered submittal review to cut their review time by 70% and halve their failure rate, which on a healthcare renovation isn't a minor efficiency gain. It's schedule protection.

The math on rejections is worth thinking about. Every time a submittal comes back, someone has to track down the issue, pull updated documentation, repackage it, and resubmit. On complex HVAC equipment, it's hours of work and weeks of lost time. Keeping the submittal schedule on track is the most underrated project management tool a mechanical sub has, and getting the package right the first time is how you do it.

Why Timely HVAC Submittals Matter More Than Most Contractors Realize

Submittal delays are one of the most consistent sources of avoidable cost on construction projects, and they rarely get the attention they deserve. A late concrete delivery gets escalated immediately. A steel erection delay triggers urgent conversations.

But when submittals consistently miss their deadlines, it tends to get absorbed as normal. It isn't.

Delays don't stay contained

The gap between a complete, on-time submittal and a late or incomplete one isn't measured in days. It's measured in the downstream effects on the review cycle. When HVAC submittals arrive complete and on time, design team reviews move at a predictable pace.

When they arrive late, incomplete, or requiring follow-up, review times extend significantly and the ripple hits procurement lead times, installation scheduling, and ultimately the project completion date. Each delay compounds the next.

The submittal schedule is a financial tool, not a tracking exercise

The submittal schedule isn't administrative paperwork. It's a project management tool with real financial consequences. Contractors who treat it that way, submitting on time and in complete packages, spend less time in rework cycles and fewer days waiting on approvals.

Those who don't tend to find out the hard way, usually when a long-lead HVAC equipment approval comes back late and the installation window has already closed.

Use RFIs before submittals go out, not after they come back

The RFI process is part of this too. Unresolved questions about spec requirements, approved manufacturers, or performance data that should have been clarified upfront have a way of surfacing mid-review and adding weeks to an already stretched timeline. Using RFIs proactively, before submittals go out rather than after they come back rejected, is one of the more straightforward ways to keep the review cycle moving.

The first step toward all of this is knowing exactly what a complete package requires before you start assembling it.

What Actually Goes Into An HVAC Submittal Package

Most mechanical subs know roughly what belongs in a submittal, but the gaps tend to show up in the details. HVAC submittals on commercial projects typically require a broader range of documentation than subs expect the first time through. A complete package usually includes the following, depending on what the contract documents require for the specific equipment type:

The spec section is the authority. Before assembling anything, pull Division 23 and read the submittals paragraph for every spec section you're covering. What's listed above is a starting framework, but the project specs define what's actually required.

Treat the MasterFormat spec sections for each piece of equipment as your checklist. Tracking what's been submitted and what's still outstanding against the submittal schedule keeps the whole process from getting away from you.

Equipment Submittals vs. HVAC Duct Submittals: What Reviewers Look For Differently

Equipment submittals and duct submittals get reviewed differently, and it's worth knowing why.

For mechanical equipment like AHUs, RTUs, fan coil units, and VAV boxes, reviewers are working through cut sheets and performance data:

• airflow CFM

• external static pressure

• motor HP and efficiency

• refrigerant type

• electrical data

• sound ratings

• certifications

HVAC submittals for equipment are largely a matching exercise, checking each characteristic against the mechanical schedule and spec.

Duct submittals operate under a different framework. The SMACNA HVAC Duct Construction Standards are typically referenced in Division 23 specs as the governing standard for fabrication and installation.

For duct submittals, reviewers are looking for pressure classification compliance, gauge and reinforcement tables, sealing class, insulation requirements, and documentation that the fabrication method conforms to SMACNA standards. If the spec requires a specific pressure class and the submittal doesn't address it, that's a rejection waiting to happen.

The distinction matters for package structure too. Equipment submittals should be organized by tag number. Duct submittals should reference the spec section and SMACNA standard explicitly, and include any shop drawings that show construction details not covered by standard tables.

That structure only holds if it's built around what the contract documents actually require, which is where most packages either earn their approval or invite their first rejection

Contract Documents And Submittal Compliance

Contract documents define the technical standard everything gets measured against. Every specification, every performance requirement, every referenced standard in Division 23 exists to tell the contractor, the GC, and the reviewing engineer what compliance actually looks like.

When submittals don't align with those requirements, the consequences aren't just a rejection notice. They're HVAC equipment that doesn't match design intent, installation methods that conflict with code requirements, and rework costs that nobody budgeted for.

What a compliant submittal package actually demonstrates

A submittal package that's built around the project documents tells a different story than one that isn't. Detailed cut sheets that match the specified equipment, installation instructions that address what the spec actually requires, and material samples where the contract documents call for them demonstrate that the sub has done the compliance work before the package arrived, not after it came back rejected.

That's what the design team and project owner are looking for when they review a submittal. Not paperwork for its own sake. Evidence that what's being proposed aligns with what was specified.

Why systematic tracking prevents late-stage surprises

Tracking this systematically can get tricky for a lot of projects. A submittal schedule that captures every submission by date, review status, and approval timeline isn't a bureaucratic formality. It's the mechanism that keeps the GC, the project owner, and the reviewing engineer aligned on where things stand.

When something is held up in review and the installation window is closing, that record is how you identify the problem early enough to do something about it. Without it, the first sign that a submittal is stuck is usually a missing material delivery or a crew standing around waiting on approval.

Compliance isn't about avoiding paperwork headaches. It's about building an HVAC system that meets every technical requirement in the project documents the first time, without the rework cycles and schedule hits that come from cutting corners on the front end.

The Technical Characteristics and Project Specifications Reviewers Actually Check

Submitting product data alone is not the same as submitting a compliant HVAC submittal. The reviewer's job is to verify that the submitted equipment meets every technical requirement in the spec. On a single piece of HVAC equipment, that can mean checking 30 or more individual characteristics across performance data, electrical data, and physical specifications.

The ones that most commonly cause problems:

Refrigerant type

The industry is mid-transition from R-410A to R-454B and other lower-GWP alternatives. A submittal with the wrong refrigerant type is an outright failure, and it's surprisingly easy to miss if you're pulling product data without checking closely.

Airflow and external static pressure

These need to match the mechanical schedule exactly, including any altitude corrections if the project is at elevation.

Motor efficiency

ASHRAE 90.1 and project specs frequently call out minimum efficiency ratings. If the submitted motor doesn't hit the required level, it's a failure regardless of everything else being right.

Electrical characteristics

Voltage, phase, amperage, and MCA/MOCP need to align with what's shown on the electrical drawings and equipment schedules.

Approved manufacturers

If the spec lists acceptable manufacturers and the submitted product isn't on that list, the review stops there unless a substitution request has been approved.

Material samples and attic stock

Some specs require material samples for insulation, duct liner, or coatings to be submitted alongside product data. Spare parts requirements are equally easy to miss. If the spec calls for spare fan belts or filters and the submittal doesn't address it, that's a failure that will also surface as a closeout issue.

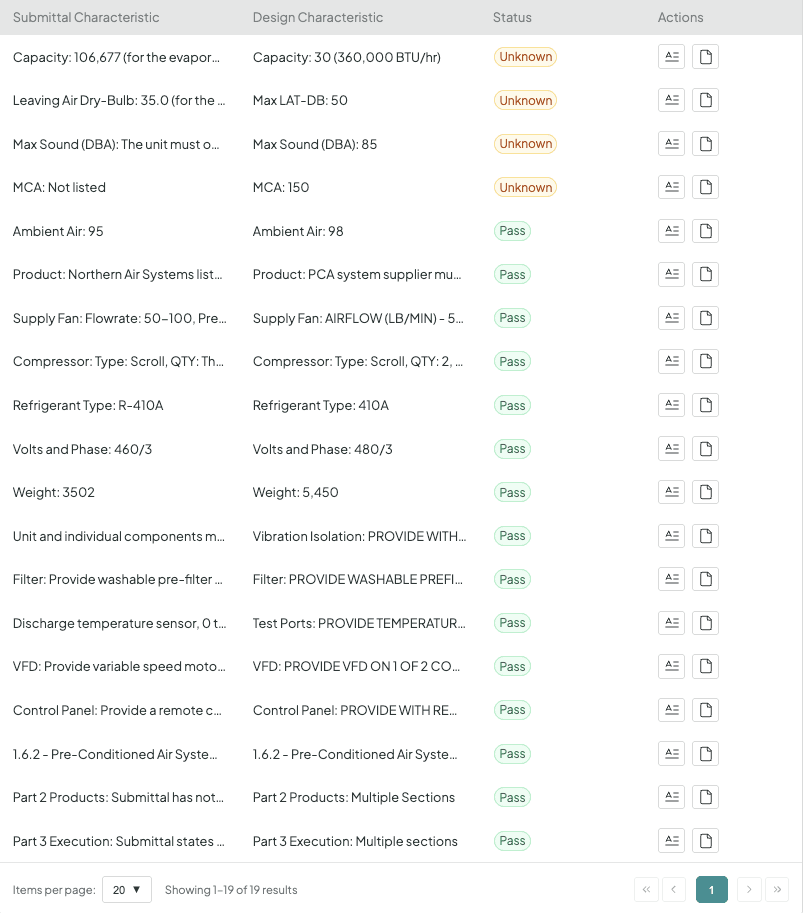

When BuildSync processes an air handler submittal, it routinely extracts 30 to 60 individual characteristics and checks each one against the specs. That level of granularity is exactly what reviewers are supposed to do manually, but rarely have time to do thoroughly. Logging each item against the submittal schedule before you submit is what catches the gaps before a reviewer does.

Tom Port, the co-founder of BuildSync, says:

"Across thousands of submittals, it’s rarely the major equipment selection that’s wrong; it’s the details. Refrigerant type, efficiency ratings, electrical characteristics, warranties, attic stock, items that are either buried in cut sheets or assumed rather than explicitly verified"

How to Organize Your HVAC Submittal Package So It Gets Reviewed First

Reviewers deal with stacks of submittals, and they have limited time for each one. Project managers and PEs on large jobs may be managing open items across dozens of active submittals at once. A package that's hard to navigate gets set aside. A package that makes the reviewer's job easy moves to the top of the pile.

A few structural choices that make a real difference:

Lead with a clear cover sheet

State the spec section, submittal number, submission date, and what's included upfront. Don't make the reviewer dig to figure out what they're looking at.

Organize by equipment tag, not by manufacturer

Reviewers are working from the equipment schedule on the drawings. If your package is organized the same way, they can move through it systematically.

Include a compliance summary

List each spec requirement and indicate where in the submittal the confirming information can be found. This is the single most effective thing a sub can do to reduce review time and signal that they've already done the compliance work.

Account for material samples separately

If the spec requires them, don't bury them at the back of a product data package. List them on the cover sheet and reference them in the compliance summary.

Flag any deviations upfront

If you're submitting equipment that doesn't match the spec exactly, say so on the cover page and explain why. Reviewers respect transparency. What they don't appreciate is discovering a deviation buried on page 47.

Keep records of every submission

Include review status and approval timelines. When deadlines start compressing, that record is the clearest picture of where things stand, what's been approved, and what's still outstanding.

The underlying principle here is that the HVAC submittal package is a communication tool, not a document dump. The reviewer should be able to open it and immediately understand what's being submitted, where to find the compliance evidence, and what, if anything, requires a judgment call.

Tracking everything against the submittal schedule before you send keeps the package complete. Packages that communicate clearly get approved faster.

Common Reasons HVAC Submittals Get Rejected

Rejection patterns repeat across construction projects, contractors, and regions. Whether the issue is with shop drawings, equipment submittals, or missing documentation, the root categories stay consistent:

Most of these can be caught before submission with a disciplined pre-check against the submittal schedule. Review each line item, confirm the documentation is present and model-specific, and verify nothing is missing before the package goes out.

A consistent template is what makes that pre-check repeatable across every job rather than something that depends on whoever is assembling the package that week.

Using an HVAC Submittal Template vs. Building From Scratch

A good HVAC submittal template is worth having, but it's a starting point, not a finish line. Creating submittals from a consistent template keeps your packages structured the same way across jobs, which makes the submittal schedule easier to manage and helps reviewers who see your packages regularly know where to find what they need.

What a template can't do is tell you whether the product you're submitting actually meets this project's specs. That's a review function, and it requires comparing the specific technical characteristics in the product data against the specific requirements in the Division 23 spec sections for this project. Templates reduce the administrative burden of HVAC submittals. They don't replace the technical review.

How to put a template to work

The practical approach is to build a template that covers your standard package structure: cover sheet, transmittal format, compliance table, and tag-organized sections. Make sure installation instructions are included where the spec requires them, not treated as an afterthought.

Track open and submitted items in your project management software so nothing falls through the cracks between packages. Then use the template as the container for project-specific product data, and do the technical compliance check as a separate step before submission.

Before anything goes out, check it against the submittal schedule line by line. Every cut sheet. Every installation instruction. Every material sample. Proper labeling across every document isn't extra effort. It's what keeps a single missing item from turning into a rejection and a two-week delay.

What Happens On The GC Side When Your Package Arrives

Understanding the review process from the GC's side changes how you put packages together. When a submittal comes in, a project engineer or PM is opening it alongside the project specs and drawings. They're checking compliance manually, flagging issues, and deciding whether to send it to the design team or kick it back first.

The volume GCs are managing is larger than most subs realize

On large construction projects, project managers and PEs may be working through hundreds of open submittal schedule items simultaneously.

Jacob Delargy, a project engineer at Monteith Construction on a $100M+ high school build, described it plainly: his team was managing a large submittal log with limited staff, including members new to the industry.

A 530-page submittal and multiple large mechanical packages coming in at once is not unusual at that scale. The team used project management software to track status across the full submittal schedule, but the actual review work was still manual until they brought in BuildSync.

Auditing is faster than investigating

What makes a GC's life easier, and what gets a package processed faster, is clear organization and a compliance summary they can work from. When a sub sends a package that already shows their work, the reviewer isn't starting from scratch. They're auditing, not investigating. That's a fundamentally different and much faster task.

Complete packages build credibility over time

There's also a relationship dimension here. Packages that are complete and well-organized build credibility with the GC team. That credibility matters when a substitution request needs fast approval, or when a minor deviation needs to be resolved with a phone call rather than a formal rejection. Part of building that credibility is eliminating the ambiguous items that force a reviewer to follow up, before the package ever leaves your hands.

Want to see how BuildSync reviews HVAC submittals against your specs before you submit them? Book a demo.

What "Unknown" Flags Mean and How to Avoid Them

Any review process, whether manual or AI-assisted, will surface characteristics that can't be verified from the documents alone. These aren't failures. They're gaps that require clarification before the submittal can be approved.

Common sources of unknowns in HVAC submittals:

• Warranty terms stated as "standard manufacturer warranty" without specifying duration or coverage, when the spec calls for a specific warranty period

• Material samples or coatings described generically ("corrosion resistant coating") when the spec requires documentation of the specific coating type and its performance in salt air or other environmental conditions

• Spare parts sections that say "available upon request" rather than listing the required items explicitly

• Control sequences referenced in the product data but not included in the submittal, when the spec requires sequence of operations documentation for the HVAC system

The fix for most of these is simple: read the spec, identify what's called for, and make sure the submittal addresses it explicitly rather than by implication.

If the spec says 10-year warranty from date of substantial completion, the submittal should say exactly that. If there's a gap you can't close with the available product documentation, flag it in the compliance summary and note that an RFI has been submitted or that clarification is pending.

Ambiguity slows approvals. Every item a reviewer has to follow up on is time spent and a line item stuck open on the submittal schedule.

Eliminating unknowns before submission is one of the highest-leverage things a mechanical sub can do to improve first-time approval rates. The construction submittal review checklist is a useful reference for making sure nothing gets missed before a package goes out.

Getting HVAC submittals right the first time isn't just about avoiding rejections. It's how mechanical subs build a reputation for running a tight process.

Reviewers remember the subs who send complete, well-organized packages. GCs remember the teams that don't create delays. Over the course of a project, and across projects, that track record is worth more than any single approval turnaround. The submittal process is one of the few places in construction where doing the work upfront pays off every time.
